Screw-In Cartridge Valves
HS2SVO604 - SCREW-IN CARTRIDGE VALVES
The HS2SV cartridge valve is used to allow or block flow, through actuation of an operator, from a circuit to reservoir. The solenoid is available with various voltage and connection options. And like other Oilgear screw-in cartridge values, they are available with a variety of options that make sure they work for your needs.
HS3SVC602 - SCREW-IN CARTRIDGE VALVES
The HS3SV cartridge valve is used to allow, block or bypass flow in a system — depending on spool chosen — through actuation of an operator. Solenoid-operated and normally closed, these valves are available with several spool configurations for a variety of functions. They can be actuated by electric, pneumatic or manual operator. The solenoid is available with various voltage and connection options.
HS3SVO602 - SCREW-IN CARTRIDGE VALVES
The HS3SV cartridge valve is used to allow, block or bypass flow in a system (depending on spool chosen) though actuation of an operator. The solenoid is available with various voltage and connection options.
HS4WPP802 - SCREW-IN CARTRIDGE VALVES
The HS4WPP cartridge valve is used to allow flow through two channels when in its normal position. When piloted, these two channels are swapped.
HSC2003 - SCREW-IN CARTRIDGE VALVES
When you need one-way flow in your hydraulic application, check valves from Oilgear can do the job. HSC cartridge-type check valves allow free flow in one direction while automatically preventing flow in the opposite direction. They can be used to separate portions of a circuit, or with a sequence valve to provide a counterbalance valve function.
HSF1202 - SCREW-IN CARTRIDGE VALVES
When you need control over your operations, screw-in cartridge valves from Oilgear can help. The HSF valve is a non-pressure-compensated, adjustable orifice for adjusting flow in one direction and allowing free flow in the other direction. These valves are used as unidirectional flow regulators.
HSF802 - SCREW-IN CARTRIDGE VALVES
When you need control over your operations, screw-in cartridge valves from Oilgear can help. The HSF valve is a non-pressure-compensated, adjustable orifice for adjusting flow in one direction and allowing free flow in the other direction. These valves are used as unidirectional flow regulators.
HSLR603 - SCREW-IN CARTRIDGE VALVES
The HSLR is a low-flow, adjustable relief valve used for pilot control of relief, pressure-reducing, sequence or any other type of pressure-controlled valve.
HSMR601 - SCREW-IN CARTRIDGE VALVES
The HSMR is a low-flow, adjustable relief valve with a cone-style poppet, used for pilot control of relief, pressure-reducing, sequence or any other type of pressure-controlled valve. With HSMR, your operations will keep going and going, without leaks.
HSN2002 - SCREW-IN CARTRIDGE VALVES
HSN valves are a non-pressure-compensated adjustable orifice used for meter-out, or meter-in circuits to control the fluid flow volume in either direction (bidirectional).
HSN801 - SCREW-IN CARTRIDGE VALVES
HSN valves are a non-pressure-compensated adjustable orifice used for meter-out, or meter-in circuits to control the fluid flow volume in either direction (bidirectional).
HSP1621 - SCREW-IN CARTRIDGE VALVES
The HSP cartridge valve can be used as a pilot-operated check valve or directional control valve. One or more cartridges can be used to provide two-, three- and four-way function. HSP valves can also function as a flow-control valve — when used with stroke-limiter operation — and as a pressure-control valve when used with appropriate pilot valve. HSP is normally closed.

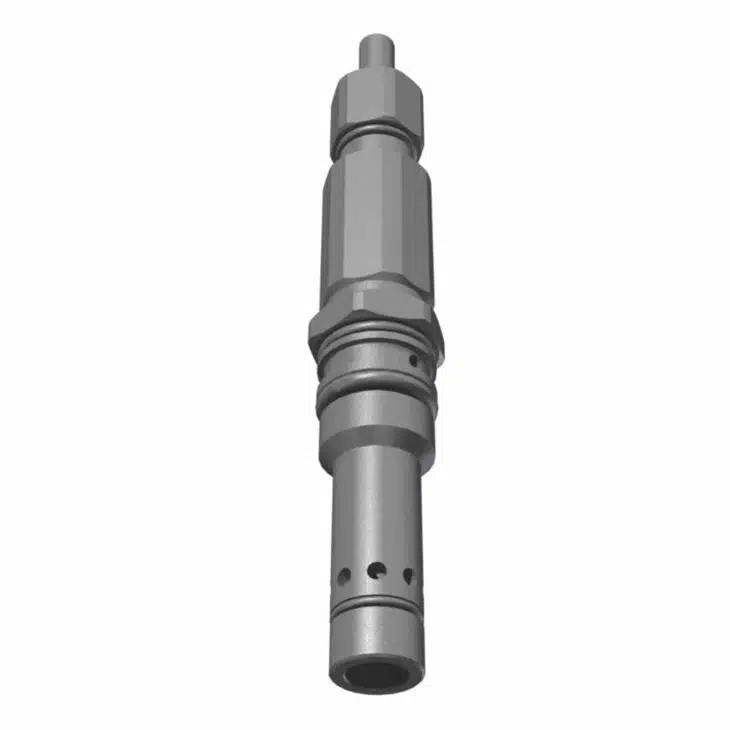

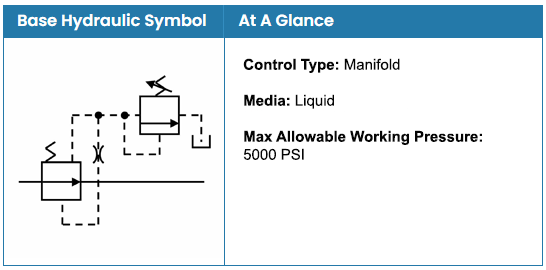

HSPR801 - SCREW-IN CARTRIDGE VALVES
A Pressure-Reducing, Piloted Valve
In addition to single pressures, these screw-in cartridge valves can be multifunctional using a pilot logic concept. A pilot control module can provide pressure adjustment, multiple pressures, vent or proportional adjustments for the main valve.
Like other Oilgear valves, HSPR valves are built to be easily serviced and repaired in the field. And these cartridge valves are backed by the experience Oilgear has gained since 1921 in matching fluid power systems to a tremendous variety of machines and applications all over the world.

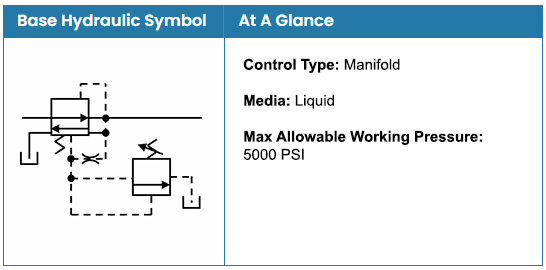

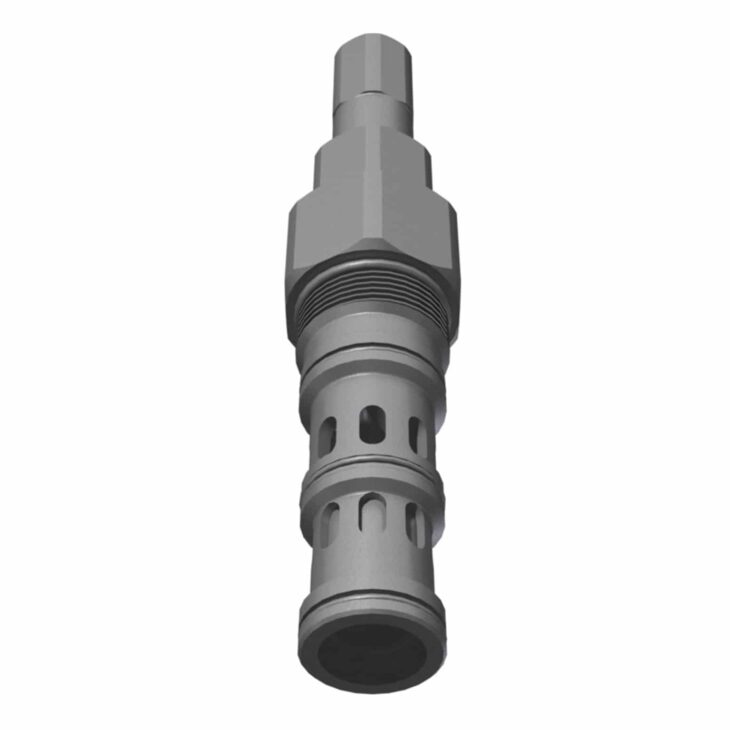

HSPR1600 - SCREW-IN CARTRIDGE VALVES
Providing Pressure Relief
Like other Oilgear valves, HSPR valves are built to be easily serviced and repaired in the field. And these cartridge valves are backed by the experience Oilgear has gained since 1921 in matching fluid power systems to a tremendous variety of machines and applications all over the world.

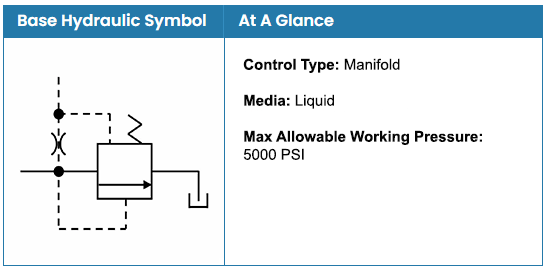

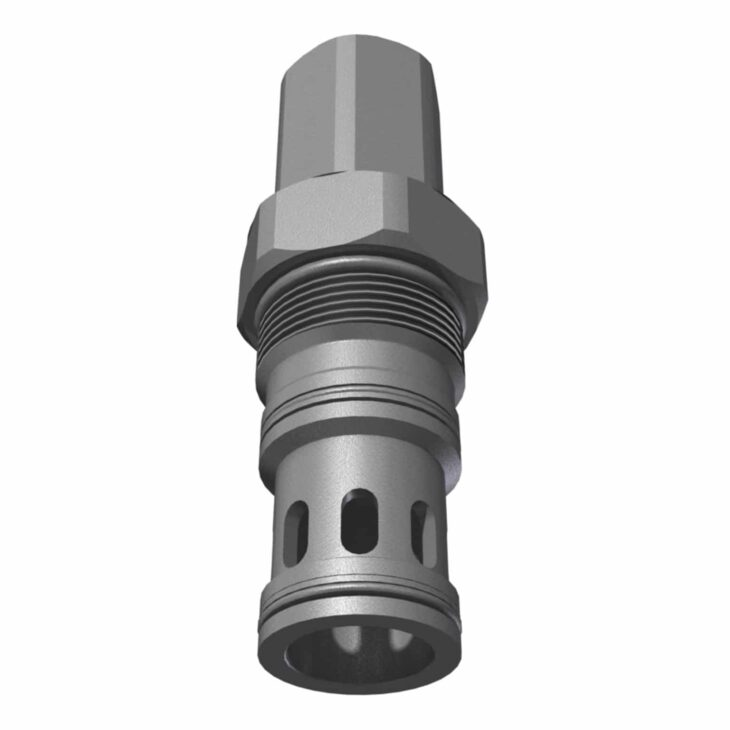

HSR1601 - SCREW-IN CARTRIDGE VALVES
Direct and Piloted Relief
In addition to single pressures, these screw-in cartridge valves can be multifunctional using a pilot logic concept. A pilot control module can provide pressure adjustment, multiple pressures, vent or proportional adjustments for the main valve.
Like other Oilgear valves, HSPR valves are built to be easily serviced and repaired in the field. And these cartridge valves are backed by the experience Oilgear has gained since 1921 in matching fluid power systems to a tremendous variety of machines and applications all over the world.

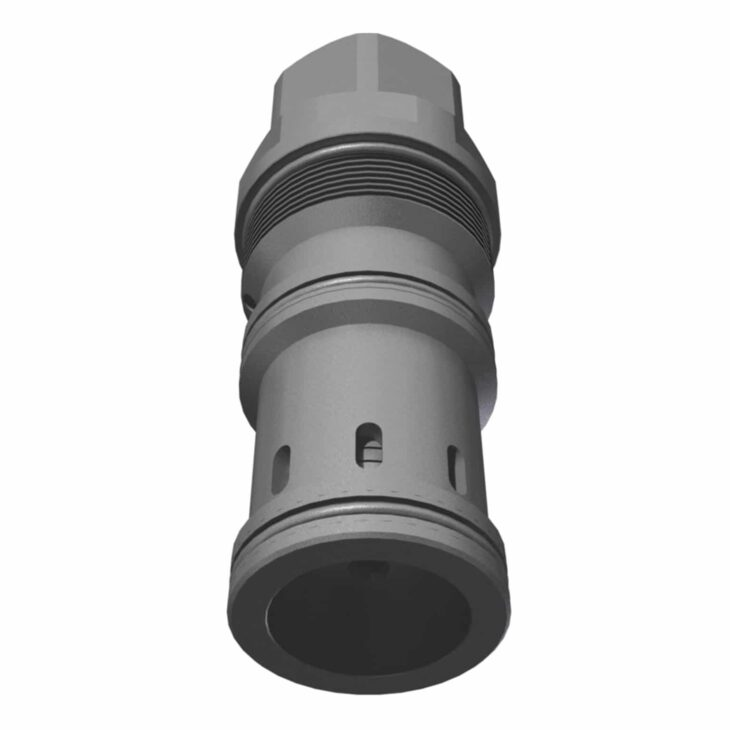

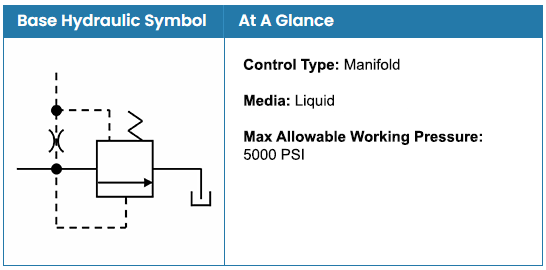

HSR2001 - SCREW-IN CARTRIDGE VALVES
Direct and Piloted Relief
In addition to single pressures, these screw-in cartridge valves can be multifunctional using a pilot logic concept. A pilot control module can provide pressure adjustment, multiple pressures, vent or proportional adjustments for the main valve.
Like other Oilgear valves, HSPR valves are built to be easily serviced and repaired in the field. And these cartridge valves are backed by the experience Oilgear has gained since 1921 in matching fluid power systems to a tremendous variety of machines and applications all over the world.

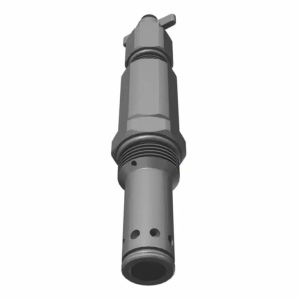

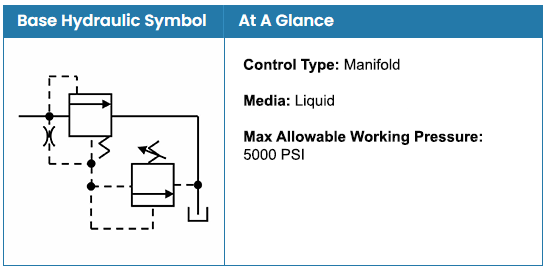

HSRS802 - SCREW-IN CARTRIDGE VALVES

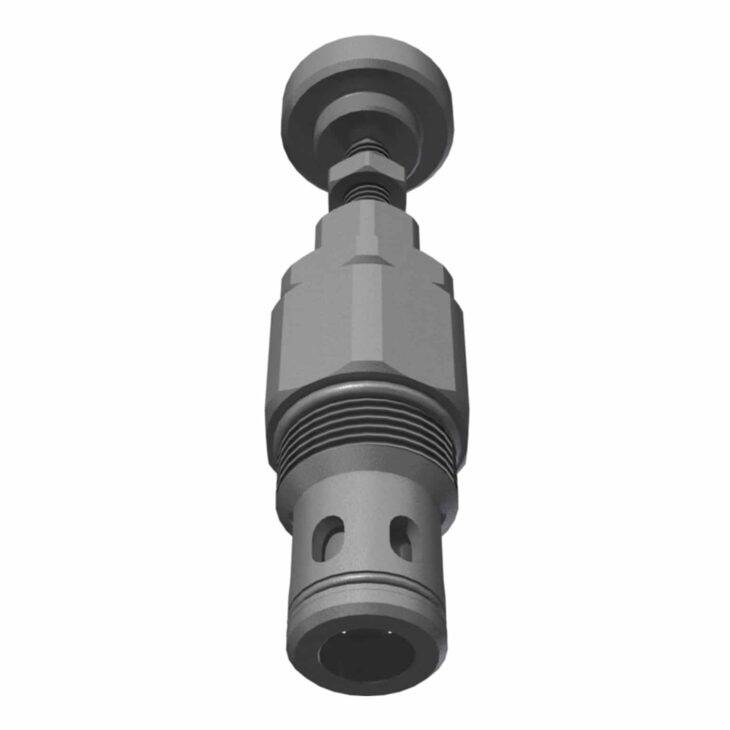

HSTV1200 - SCREW-IN CARTRIDGE VALVES
A Throttle Valve with Flexible Outcomes
These valves are easily adjustable when in use, all the way up to 5000 psi, and in either direction. Like other Oilgear valves, screw-in cartridges are built to be easily serviced and repaired in the field. And a stepping motor drive can be added for open- or closed-loop control.
These cartridge valves — and all Oilgear products — are backed by the experience Oilgear has gained since 1921 in matching fluid power systems to a tremendous variety of machines and applications all over the world.

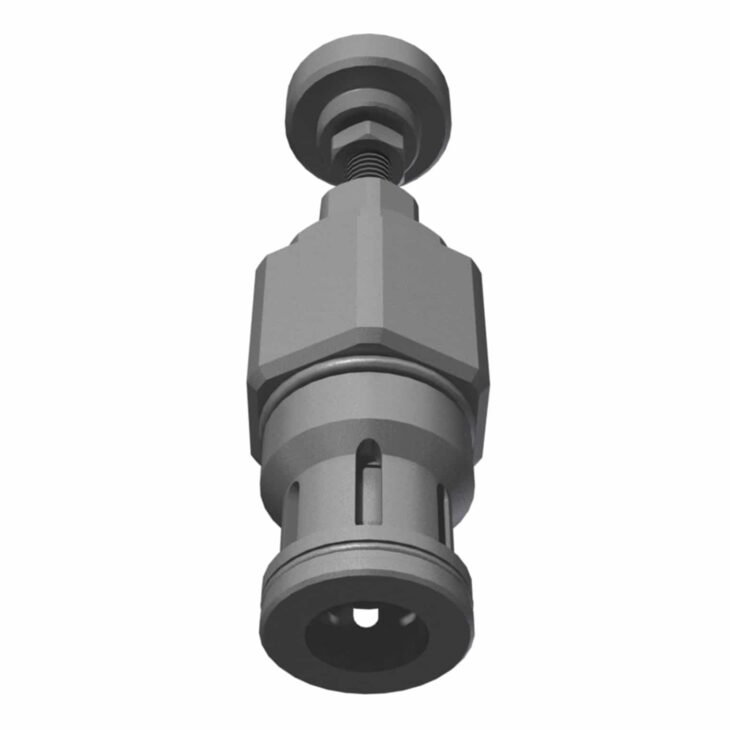

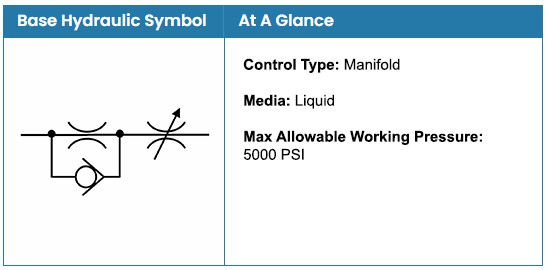

HSTV1601 - SCREW-IN CARTRIDGE VALVES
A Throttle Valve with Flexible Outcomes
These valves are easily adjustable when in use, all the way up to 5000 psi, and in either direction. Like other Oilgear valves, screw-in cartridges are built to be easily serviced and repaired in the field. And a stepping motor drive can be added for open- or closed-loop control.
These cartridge valves — and all Oilgear products — are backed by the experience Oilgear has gained since 1921 in matching fluid power systems to a tremendous variety of machines and applications all over the world.

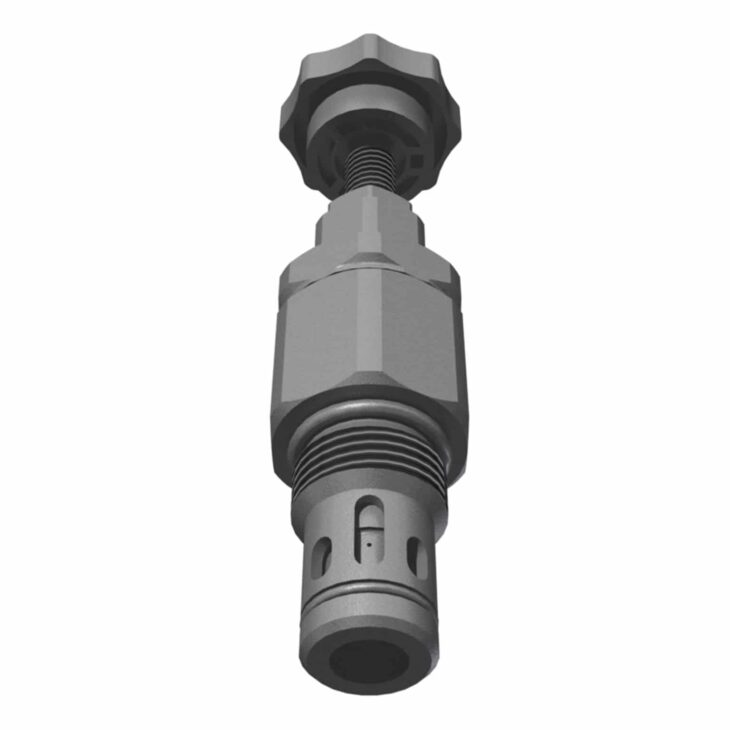

HSTV800 - SCREW-IN CARTRIDGE VALVES
A Throttle Valve with Flexible Outcomes
These valves are easily adjustable when in use, all the way up to 5000 psi, and in either direction. Like other Oilgear valves, screw-in cartridges are built to be easily serviced and repaired in the field. And a stepping motor drive can be added for open- or closed-loop control.
These cartridge valves — and all Oilgear products — are backed by the experience Oilgear has gained since 1921 in matching fluid power systems to a tremendous variety of machines and applications all over the world.
